Each production line consists of ONE AXSR Machine & TWO AXSC Machines

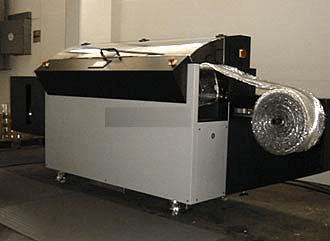

The AXSR forms a three-dimensional mesh, by cutting, stretching and twisting. The foil is fed to a cutting unit controlled by a self-regulating brake system for a precise tension. A sensor compensates and regulates the foil speed between the cutting unit and the Stretcher for an optimum stretching result.
Each AXSR Machine can produce 7 million AXS Liters per year based on 20 hours per day and 6 days per week.

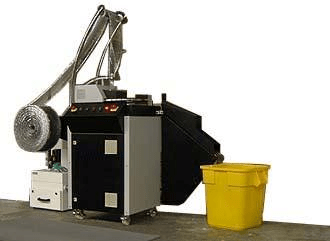

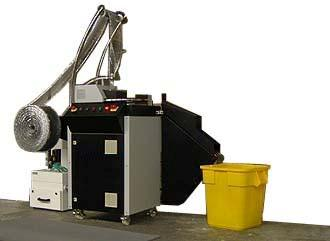

The AXS Cylinders are produced by feeding the AXS Rolls into a separate machine AXSC. The main part of the AXSC is the rotating inner drum, fitted with two blades, which cuts the AXS mesh into strips. The strips are converted into cylinders between the rotating inner drum and the fixed outer drum.
TWO AXSC Machines can produce 7 million AXS Liters per year based on 20 hours per day and 6 days per week.
